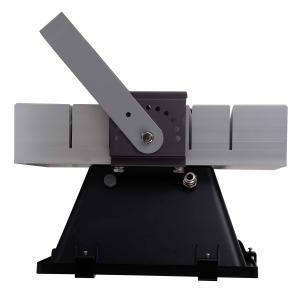

25°60°90° Beam angle 200W Industrial High Bay LED Lighting CREE IP65 90-305VAC

Product Categories

LED Flat Panel Lighting [78]
LED High Bay Lights [91]
LED Street Light [148]
LED Flood Lighting [92]
Plasma Light Ball [34]
Plasma Lightning Plate [8]
Industrial High Bay LED Lighting [12]
LED Canopy Light [30]
LED Tunnel Light [19]
LED Tri Proof Light [18]
LED Tube Lighting [30]
LED Light Bulb [22]
LED Ceiling Light [36]
LED Track Light [12]
LED Strips Light [4]
LED SPA Light [16]

Suzhou Bellaid lighting co.,ltd

Contact Now

25°60°90° Beam angle 200W Industrial High Bay LED Lighting CREE IP65 90-305VAC

Name: 256090 Beam angle 200W Industrial High Bay LED Lighting CREE IP65 90305VAC
Brand: Bellaid
Price: 1 USD

China 25°60°90° Beam angle 200W Industrial High Bay LED Lighting CREE IP65 90-305VAC wholesale

Brand Name : Bellaid

Model Number : BLD-HB-CA-200W

Certification : CE/ROHS

Place of Origin : Suzhou ,China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 10,000pcs per month

Delivery Time : 20 working days after received your deposit

Packaging Details : Packed in carton firstly,and then put them on pallet for shipment

Product Name : LED high bay light

Input voltage : 90~305 AC operation with included LED driver

LED Chip brand : CREE XBD

Lifespan : 50000 Hrs

Application : factory/industry/warehouse

Wattage : 200W

Lumen Output : 20000-21000Lm

Warranty : 3 Years Warranty

Material Of Body : aluminum alloy with copper heat pipe

Beam angle : 25° 60° 90°

Color temperatere : 2700-6500K

CRI : 75-80

Contact Now

25°60°90° beam angle,100W,150W,200W,300W,400W,500W High performance CREE led industrial light with IP65 and 90-305VAC for high proof building.

Product Specifications:

Construction & materials
Dimension	Φ368*500mm
Housing	6063 CNC aluminum alloy heat sink with copper heat pipe and tempered glass cover
Finish color	black
Lens type	Frosted or clear

Environmental system
Work environment	Indoor or outdoor
Operating temperature	-20～50℃
Mercury (mg)	0

Optical system
Luminous flux	19000-20000lm @ 3000K, 20000-21000lm @ 6000K
Color temperature	3000K & 6000K is best seller.
CRI	＞75,usually 83 @ 3000k.
Lumen maintence at 6000h	93%
Lumen Maintenance Factor at Lifetime	0.75

Electrical system
Input voltage/Current	90-305Vac,47/63Hz
Off state power	0
Power consumption	200W
Power Factor	0.93-0.95
THD	＜20%
Protection	Class I driver, IP65 indoor use
Dimmable	No
Switching Cycles	50000
Start Time (s)	0.35
Warm-up time to 60% (s)	Instant full light

Key features:

1. Beam angle: 25, 90 or 120 degree. Dustproof cover, or Crystal PC reflector available.

2. Material: CNC aluminum heat sink and anodizing and anti-corrosion treatment

3. LED Chip: High brightness or Cree chip

4. LED Driver: Built-in-cross-flow Meanwell driver.

5. Energy saving: Replace 80w-1000w traditional lamps, saving more than 75%

6. Green: Super environmental, no humming, no RF interference

7. Long lifespan: more than 50000 hours

8. Easy to install

9. Warranty: 3-5 years.

Advantages

Primary Competitive Advantages of high power industrial LED lighting:

1. Using high chrome plating fins aluminum as heat sink.
2. Using Cree XTE, LG Innotek LED chips.
3. Using Mean Well power driver.
4. IP level is IP65,Can be used in outdoor severe environment.
5. Base: Hook with safety rope.
6. Beam angle: 25 / 60 / 90 degree.
7. With two pieces safety cable.
8. Energy saving than traditional lamp about 70%~80%.
9. Main part of heat dissipation is under the protection of several patents.
10.Compliance with CE&RoHS&FCC&PSE&ULstandard regulations.
11.Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction

Application:

1.shipyard lighting

2. mine lighting

3.workshop lighting

4.factory lighting

5.warehouse lighting

6.toll gate lighting

7. supermarket lighting

8.exhibition hall lighting

9.stadium lighting

10.store lighting

11.Farm lighting

12.other places need lighting
